HOW TO ASSEMBLE - BLUM METABOX - Deep
|
|
|
|
|
This page shows the quickest and easiest way to assemble your drawer box.
A video of each procedure is also available on the product page.
|

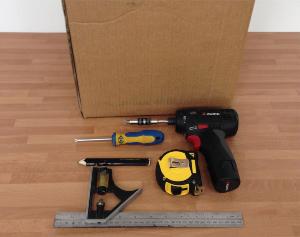

| | Tools and materials required.
- Cordless drill driver or equivalent
- Phillips screwdriver
- Set square or straight edge
- Tape measure
- Pencil
- Supports, or a box that is taller than the drawer sides
|
| | |

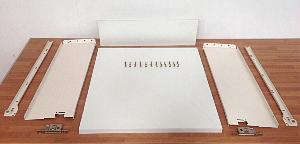

| | Complete drawer kit, including..
- Base and back panel (made to your specified size)
- 1 x Pair drawer sides (L & R)
- 1 x pair drawer runners (L & R)
- 1 x pair brackets to attach your own drawer front (L & R)
- All screws for assembly and installation
- Blum Lifetime Warranty Card
|
| | |

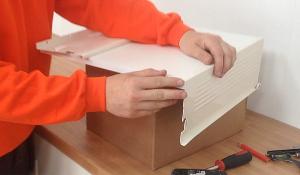

| | - Lay the drawer base on top of the supports
- Position the drawer side as shown tight against the base panel.
|
| | |

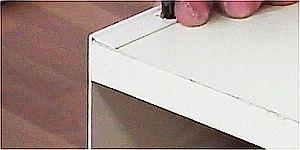

| | - Ensure that the ends of the drawer side and base line up as shown.

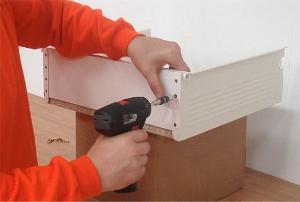

- Attach the drawer sides to the base with the screws supplied
|
| | |
| | - Turn the box over and slide the back panel into position
- Attach the back panel with the 8 x 15mm screws supplied
- You are now ready to mark out and attach the drawer runners
|
| | |
| | |
|
|
|
