HOW TO ASSEMBLE - BLUM INTERNAL METABOX - Shallow
This page shows the quickest and easiest way to assemble your drawer box.
A video of each procedure is also available on the product page.

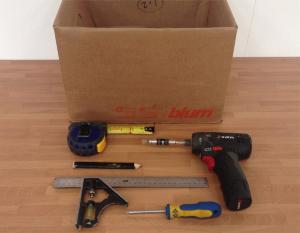

How to assemble shallow inner blum  metabox drawer Tools and materials required.
  • Cordless drill driver or equivalent
  • Philips screwdriver
  • Set square or straight edge
  • Tape measure
  • Pencil
  • Supports, or a box that is taller than the drawer sides
How to assemble shallow inner blum  metabox drawer

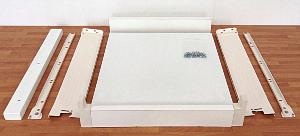

  • Complete internal drawer kit


How to assemble shallow inner blum  metabox drawer

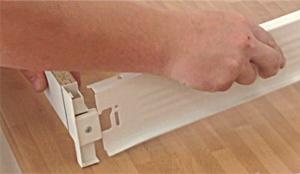

  • First turn the internal drawer front upside down and present drawer side as shown
How to assemble shallow inner blum  metabox drawer

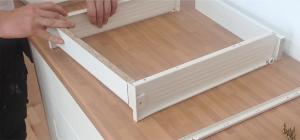

  • Attach other drawer side
How to assemble shallow inner blum  metabox drawer

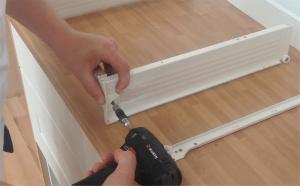

  • Tighten both sides with screwdriver
How to assemble shallow inner blum  metabox drawer
  • Place the base of the drawer box on top of the cardboard box or packer

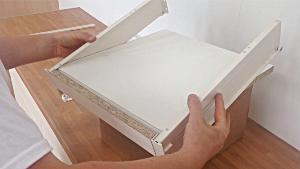

  • Present the completed front and sides to the base as shown
How to assemble shallow inner blum  metabox drawer

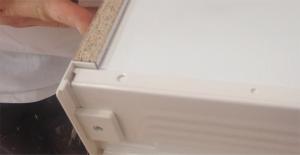

  • Pull the base tight against the front ensuring there is no gap
How to assemble shallow inner blum  metabox drawer

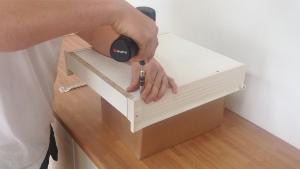

  • Attach the base using the 15mm screws supplied
How to assemble shallow inner blum  metabox drawer

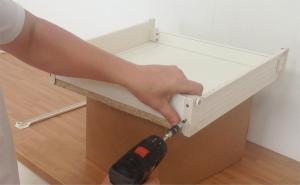

  • Turn the box over and slide the back panel into position
  • Attach the back panel with the 4 x 15mm screws supplied
  • You are now ready to mark out and attach the drawer runners
