HOW TO ASSEMBLE - INTERNAL BLUM TANDEMBOX - Shallow
This page shows the quickest and easiest way to assemble your drawer box. A video of each procedure is also available on the product page.
Tools and materials required.
Cordless drill driver or equivalent
Phillips screwdriver
Set square or straight edge
Tape measure
Pencil
Supports, or a box that is taller than the drawer sides

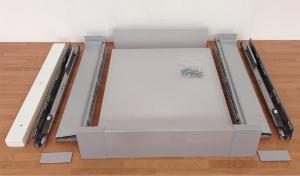

Complete internal drawer kit
Please Note - Back Brackets are now sent loose to prevent damage in transit The section below shows how to attach the back bracket to the drawer side. There will be 1 x left hand bracket and 1 x right hand bracket for each drawer.
Line up the back bracket as shown in the image and push firmly down. You will hear a click as the bracket locks into place.
The brackets are made left and right sided, and can only go on one way on the correct drawer side.
Lay the drawer base on top of the cardboard box or packer
Put the drawer side in position and line up the end with the front of the base as shown

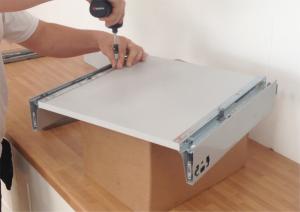

Hold in position and put the screws in to secure the drawer side
Repeat for the other side
Turn the box over and slide the back panel into position

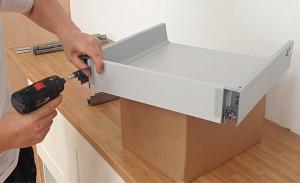

Attach the back panel with the 4 x 15mm screws supplied
Line up the fixing brackets on the drawer front with the drawer side

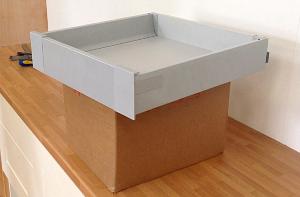

Click the drawer front into place
You are now ready to mark out and attach the drawer runners
