HOW TO FIT DRAWER FRONT - BLUM TANDEMBOX - Shallow
This page shows the quickest and easiest way to mark out and fit your drawer front
A video of each procedure is also available on the product page.

How to fit shallow Blum Tandembox Antaro drawer front Tools and materials required.
  • Your drawer front
  • Complete drawer box kit
  • Measuring tape
  • Set square or similar
  • Pencil
  • Cordless drill driver or equivalent
How to fit shallow Blum Tandembox Antaro drawer front
  • Completed drawer box is in position

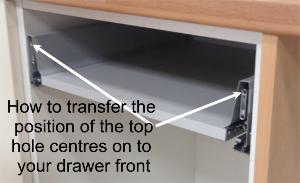

  • The position of the top holes on the fixing brackets have to be transferred onto the drawer front

How to fit shallow Blum Tandembox Antaro drawer front

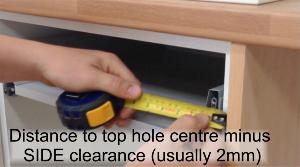

  • Measure from the outside of the base unit to the centre of the top hole on the fixing plate
  • For your reference, this size should be around 33mm
How to fit shallow Blum Tandembox Antaro drawer front

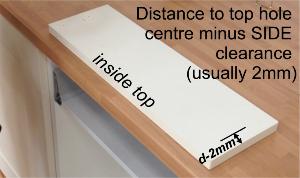

  • Lay your drawer front as shown with the inside top marked in pencil
  • REMEMBER to deduct the side clearance before marking the drawer front
  • Just to clarify, the side clearance is 4mm because the unit is 500mm wide and the drawer front is 496mm wide
  • This 4mm is halved to give 2mm clearance per side
  • Mark the line on your drawer front as shown
How to fit shallow Blum Tandembox Antaro drawer front
  • Measure from the underside of the worktop to the centre of the top hole on the fixing plate


How to fit shallow Blum Tandembox Antaro drawer front

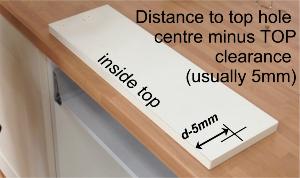

  • REMEMBER to deduct the top clearance before marking the drawer front
  • To clarify, the top clearance is usually 4mm - 5mm
  • Mark the line on your drawer front as shown
How to fit shallow Blum Tandembox Antaro drawer front
  • You are now ready to attach the fixing plates to the drawer front
  • The fixing plates must be removed from the drawer sides
  • First remove the plastic covers by pulling from bottom corner as shown
How to fit shallow Blum Tandembox Antaro drawer front
  • Using Phillips screwdriver follow instructions below
  • Push screwdriver in until the small sprung plate moves up as shown
  • This exposes the full crossed slot allowing you to push screw driver in
How to fit shallow Blum Tandembox Antaro drawer front
  • Now twist clockwise as shown
  • As you twist clockwise, the plate should move out then fully release
  • Repeat the same on the other side
  • You can now fit the plates to the drawer front
How to fit shallow Blum Tandembox Antaro drawer front
  • Place the plate as shown with the holes in position over the pencil marks
  • Screw the plate into position using the 15mm screws supplied
  • Repeat for the other plate
  • You are now ready to attach the drawer front into the drawer sides
How to fit shallow Blum Tandembox Antaro drawer front
  • With the drawer box slill in position in the runners proceed as below

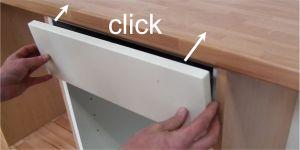

  • Hold the drawer front as shown and line up the plates
  • Push the drawer front into the sides until both sides click into place
  • With the drawer front now in position, you can check the clearance all round and decide on adjustments required
  • See below for procedure to adjust your drawer front.
How to fit shallow Blum Tandembox Antaro drawer front
  • Drawer front can be adjusted as shown in photo
How to fit shallow Blum Tandembox Antaro drawer front
  • When you are happy with adjustments and drawer front clearance, click the plastic covers back into place as shown.
  • The drawer box installation is now complete and you can re-fit the handle or knob.
TO REMOVE THE BLUM TANDEMBOX DRAWER FROM THE RUNNERS -
Pull the drawer all the way out
Hold each corner at the front
Pull up the way and wiggle the drawer at the same time
Don't worry, it won't break, it will just free the drawer
