HOW TO FIT RUNNERS FOR INTERNAL TANDEMBOX SHALLOW
|
|
|
|
|
|
|
This page shows the quickest and easiest way to mark out and fit runners for your drawer box. |
If you would prefer to watch a video of this procedure, click here
|
 |
|
With the drawer box assembled, you are now ready to fit the packer and runners- Some general observations for fitting the internal shallow Tandembox
- The 25mm packer supplied with your kit goes on the hinge side of your unit, and allows the drawer to clear the hinges

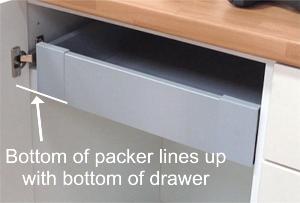

- To assist with the positioning, please note that the bottom of the packer lines up with the bottom of your drawer box
|
|
|
|
|
 |
|
- Decide on the position of your internal drawers using the following factors
- Equally space them in the unit if you have 3 or 4
- Space them in the unit depending on what will be stored - eg cereal boxes/tins/etc
|
|
|
|
|
 |
|

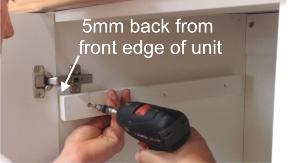

- With the position decided, place the packer 5mm back from the edge of the unit and put a screw in the first hole
- Tighten the screw so that the packer stays in position
|
|
|
|
|
 |
|

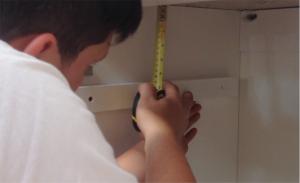

- Check the packer is level by measuring front and back
- When packer is level, put in the other two screws then secure all 3
|
|
|
|
|
 |
|
- Hold the runner in position flush with the front and bottom of the packer
- Mark two or three holes in pencil
|
|
|
|
|
 |
|

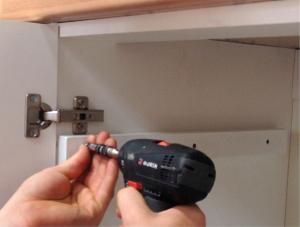

- Use your cordless driver and a screw to start the holes before presenting runner
- Just start the hole off, do not go in the full length of the screw
|
|
|
|
|
 |
|
- Finally, fit runner using the screws supplied
- Make sure the screws do not go in at an angle, as this can snag the drawer
|
|
|
|
|
 |
|
- With the runner and packer fitted, you can now fit the runner on the other side.

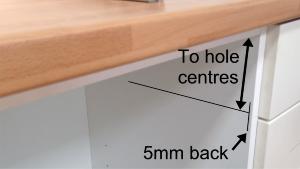

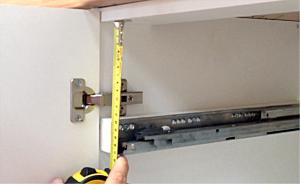

- The easiest way to do this is to measure to the hole centres on the runner just fitted
|
|
|
|
|
 |
|
- Transfer this size over to the other side, remembering to come in 5mm from the edge of the unit
- Mark a line inside the unit using a set square to ensure it is level
|
|
|
|
|
 |
|

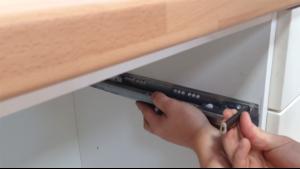

- Hold the runner in position 5mm back from the front edge, with the long line running right through the hole centres
- Mark 2 to 3 holes in pencil
|
|
|
|
|
 |
|
- As before, start the holes off with a screw, then secure the runner with four screws
|
|
|
|
|
 |
|
- With the runners fully retracted inside the unit, lay the box onto the runners approx 25% of the way in
- Push the box downward and in toward the back of the unit
- The box should click into place in the runner and locate itself
- Installation is complete
|
|
|
|
|
|
|
|
|
