HOW TO FIT RUNNERS - INTERNAL BLUM TANDEMBOX - Deep
|
|
|
|
|
This page shows the quickest and easiest way to mark out and fit runners for your drawer box.
A video of each procedure is also available on the product page.
|
| | With the drawer box assembled, you are now ready to fit the packer and runners- Some general observations for fitting the internal deepTandembox
- The 25mm packer supplied with your kit goes on the hinge side of your unit, and allows the drawer to clear the hinges

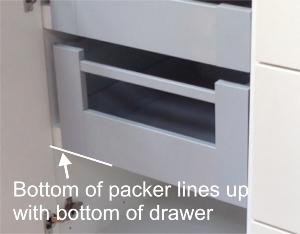

- To assist with the positioning, please note that the bottom of the packer lines up with the bottom of your drawer box
|
| | |

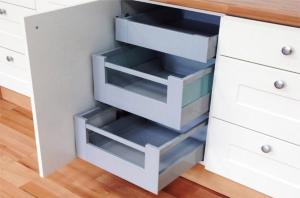

| | - Decide on the position of your internal drawers using the following factors
- Equally space them in the unit if you have 3 or 4
- Space them in the unit depending on what will be stored - eg cereal boxes/tins/etc
- PLEASE NOTE the following instructions show how to fit the drawer directly into the bottom of the base unit
- For any other position, please refer to the instructions to fit the runners for the shallow internal Tandembox here
|
| | |

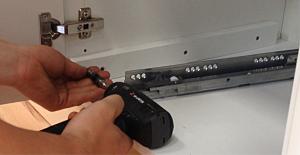

| | - Simply lay the packer directly on to the base of your unit with the front of the packer 5mm back from the front edge of the unit
- Put in the three screws and secure the packer in position
|
| | |

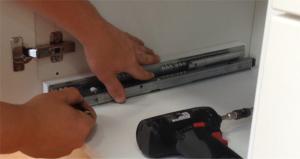

| | - Lay the runner on the base of the unit and line up the front of the runner flush with the front of the packer
- Mark 4 holes in pencil
|
| | |
| | - Start these holes off using a screw, dont go in all the way, just enough to locate the screws
|
| | |

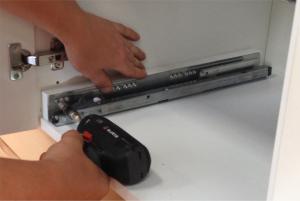

| | - Put the runner back in place and secure with 4 screws
- Make sure the screws do not go in at an angle, as this can snag the drawer
|
| | |
| | - Lay the opposite runner directly on to the base of the unit and bring the front 5mm back from the front edge of the unit
- Fit the runner using the same method as above
|
| | |

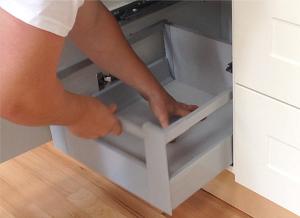

| | - With the runners in place, you can now fit the drawer
- With the runners fully retracted inside the unit, lay the box onto the runners approx 25% of the way in
- Push the box downward and in toward the back of the unit
- The box should click into place in the runner and locate itself
- Installation is complete
TO REMOVE THE BLUM TANDEMBOX DRAWER FROM THE RUNNERS -
Pull the drawer all the way out
Hold each corner at the front
Pull up the way and wiggle the drawer at the same time
Don't worry, it won't break, it will just free the drawer |
| | |
|
|
|
