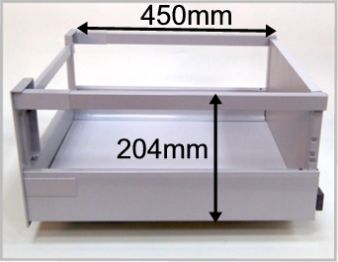

SIDE VIEW (See installation notes below)
INTERNAL DEEP Blum Tandembox kitchen drawerbox with SOFT CLOSE
(INCLUDES INTERNAL DRAWER FRONT).
TANDEMBOX is Blum's premium fully enclosed metal drawer system.
Feather light gliding full extension drawers.
Impressive 30kg load capacity.
PACK INCLUDES -
- 2 x metal sides plus gallery rails
- 2 x metal runners with SOFT CLOSE
- 25mm packer for runner on hinge side (2 packers on units over 600w)
- 16mm thick base and back panels
- All screws for assembly and installation
- LIFETIME BLUM WARRANTY CARD
*********IMPORTANT INSTALLATION NOTES*********
INTERNAL DEEP TANDEMBOX requires MINIMUM HEIGHT SPACE of 230mm
This drawerbox pack will fit a base unit with a MINIMUM of 470mm front to back on the inside.
The packing strips included will allow the drawers to clear the hinges and operate normally.
WE SUPPLY 2 PACKING STRIPS FOR UNIT WIDTHS 700 800 900 &1000.
To order any size not shown here, please call 0800 028 5588 or email firstname.lastname@example.org
CLICK HERE FOR WRITTEN INSTRUCTIONS
Please see below video instructions for easy assembly and installation of your new drawer box.
1st video - Assemble your drawer box
2nd video - Mark out and fit the drawer runners
3rd video - Fit the optional frosted glass side infills
