HOW TO ASSEMBLE - BLUM TANDEMBOX ANTARO - Shallow
|
|
|
|
|
This page shows the quickest and easiest way to assemble your drawer box.
A video of each procedure is also available on the product page.
|

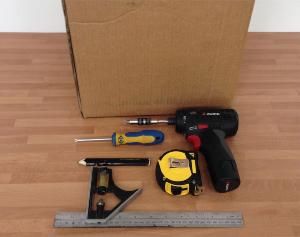

| | Tools and materials required.
- Cordless drill driver or equivalent
- Phillips screwdriver
- Set square or straight edge
- Tape measure
- Pencil
- Supports, or a box that is taller than the drawer sides
|
| | |
| | Please Note - Back Brackets are now sent loose to prevent damage in transit
The section below shows how to attach the back bracket to the drawer side.
There will be 1 x left hand bracket and 1 x right hand bracket for each drawer |
| | |

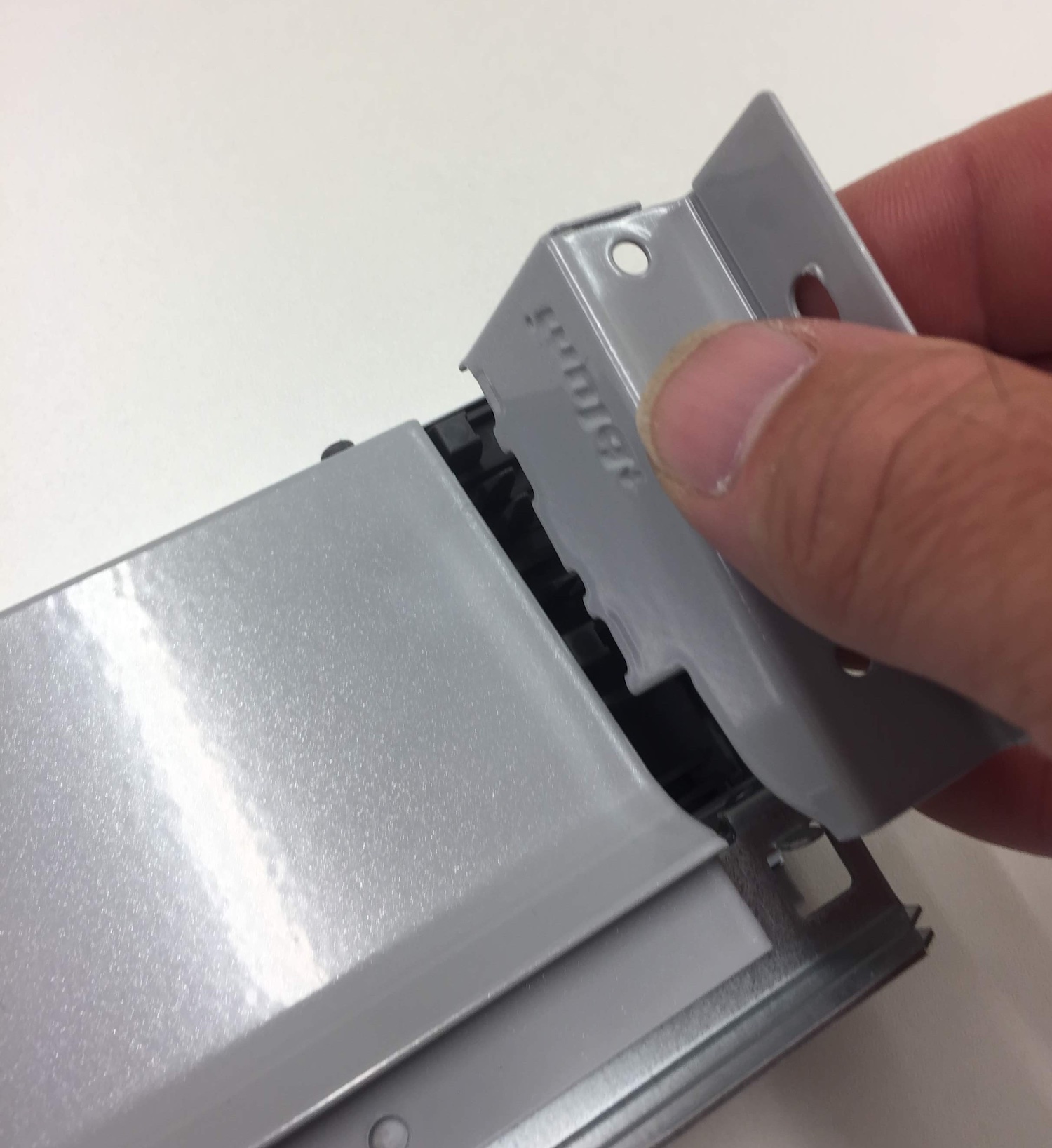

| | - Line up the back bracket as shown in the image and push firmly down.
- You will hear a click as the bracket locks into place.
- The brackets are made left and right sided, and can only go on one way on the correct drawer side.
|
| | |

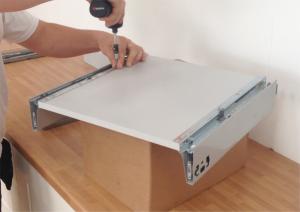

| | - Lay the drawer base on top of the supports
- Position the drawer side as shown tight against the base panel.
|
| | |
| | - Ensure that the ends of the drawer side and base line up as shown.
- Attach the drawer side to the base with the screws supplied
|
| | |

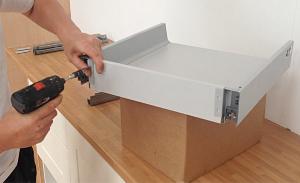

| | - Repeat for the other side
|
| | |
| |
- Turn the box over and slide the back panel into position
- Attach the back panel with the 4 x 15mm screws supplied
- You are now ready to mark out and attach the drawer runners
|
| | |
| | |
|
|
|
