This page shows the quickest and easiest way to mark out and fit runners for your drawer box.

If you would prefer to watch a video of this procedure, click here

Tools and materials required.
  • Your drawer front
  • Complete drawer box kit
  • Measuring tape
  • Set square or similar
  • Pencil
  • Cordless drill driver or equivalent

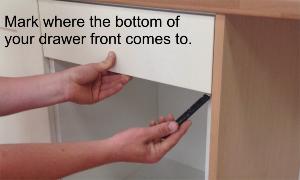

  • The reference point or starting point for marking runners is the bottom of your drawer front

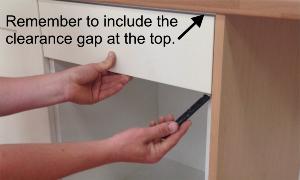

  • When marking on the unit where the bottom of your drawer front comes to, it is important to remember the top clearance gap. This gap is usually 4mm - 5mm, and can vary from one manufacturer to another.

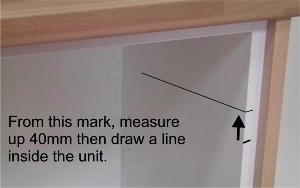

  • For Tandembox shallow runners, you come up 40mm from this mark.
  • Extend this 40mm line inside the unit for 200mm to 300mm
  • PLEASE ENSURE that this line is at 90 degrees to the front edge of the unit (using a set square if possible)

  • PLEASE NOTE, if this line crosses over any of the original holes in your unit, and they will get in the way of the new holes, move the line UP 10mm approx. Remember to go up the same amount on the other side.

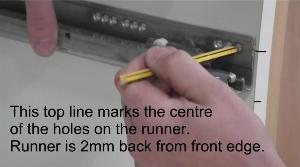

  • Hold the runner 2mm back from the front edge of the unit
  • Make sure that the line you have marked in the unit runs right through the middle of the holes on the runner.
  • Mark in pencil four holes in the runner includimg the first and last

  • Use your cordless driver and a screw to start the holes before presenting runner
  • Just start the hole off, do not go in the full length of the screw

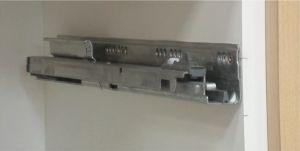

  • Finally, fit runner using the screws supplied
  • Make sure the screws do not go in at an angle, as this can snag the drawer
  • Repeat the process for the other runner

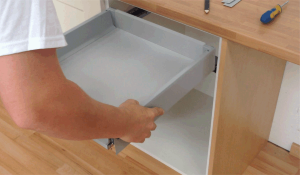

  • With the runners fully retracted inside the unit, lay the box onto the runners approx 25% of the way in
  • Push the box downward and in toward the back of the unit
  • The box should click into place in the runner and locate itself
  • You are now ready to fit the drawer front
