HOW TO ASSEMBLE - INTERNAL BLUM TANDEMBOX ANTARO - Deep
|
|
|
|
|
This page shows the quickest and easiest way to assemble your drawer box.
A video of each procedure is also available on the product page.
|

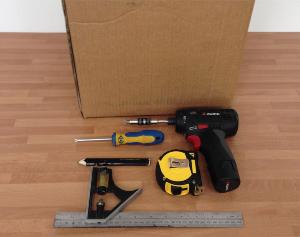

| | Tools and materials required.
- Cordless drill driver or equivalent
- Phillips screwdriver
- Set square or straight edge
- Tape measure
- Pencil
- Supports, or a box that is taller than the drawer sides
|
| | |

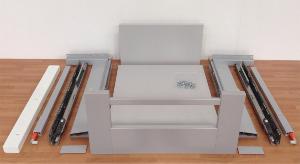

| | - Complete internal drawer kit
Please Note - Back Brackets are now sent loose to prevent damage in transit
The section below shows how to attach the back bracket to the drawer side.
There will be 1 x left hand bracket and 1 x right hand bracket for each drawer
|
| | |
| |

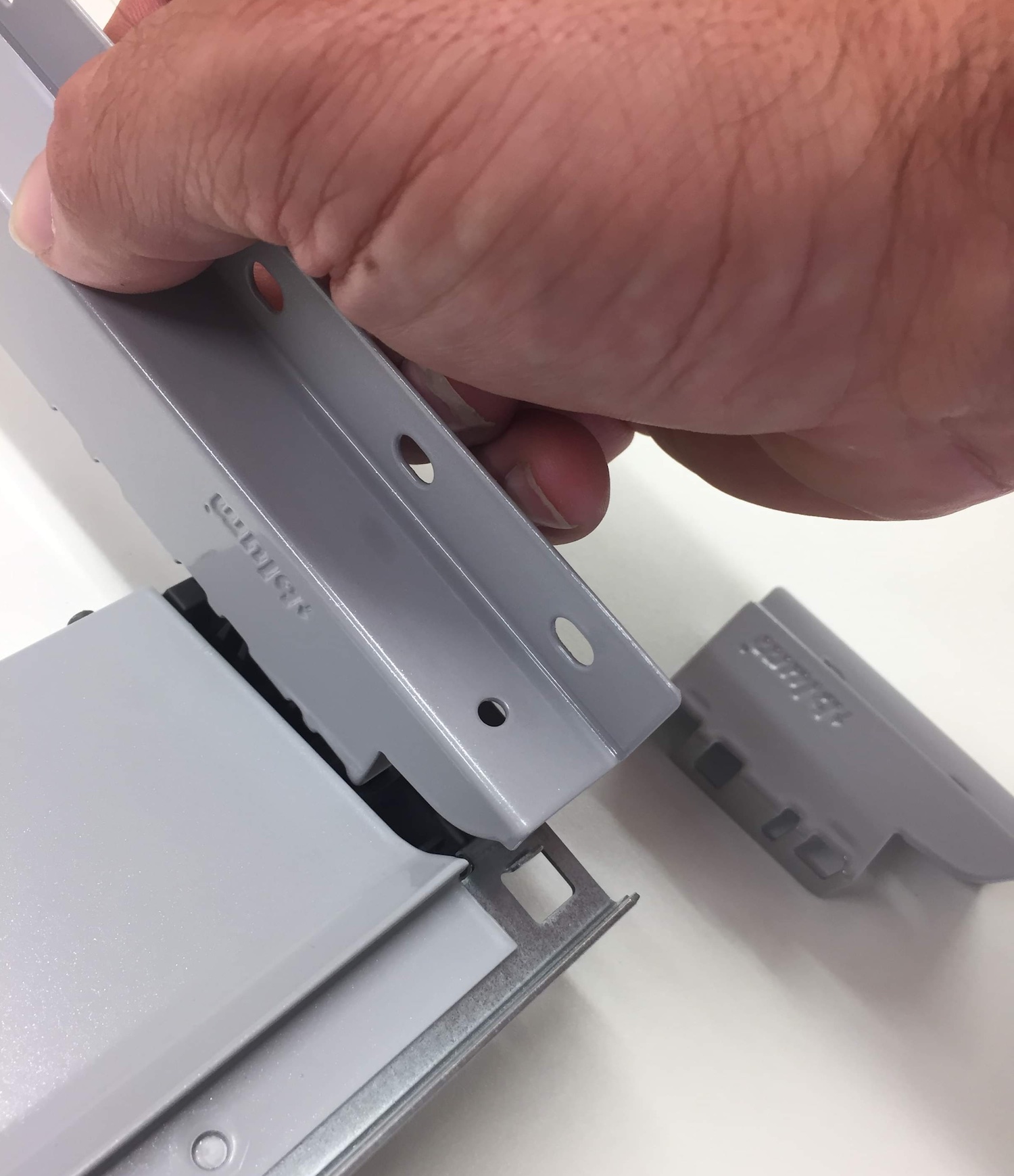

- Line up the back bracket as shown in the image and push firmly down.
- You will hear a click as the bracket locks into place.
- The brackets are made left and right sided, and can only go on one way on the correct drawer side.
|
| | |

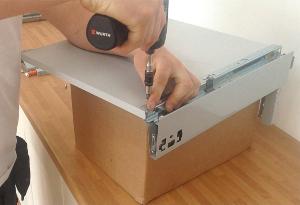

| | - Lay the drawer base on top of the cardboard box or packer
- Put the drawer side in position and line up the end with the front of the base as shown
- Hold in position and put the screws in to secure the drawer side
|
| | |
| | - Repeat for the other side
|
| | |

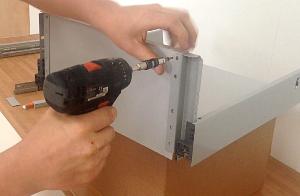

| | - Turn the box over and slide the back panel into position
- Attach the back panel with the 10 x 15mm screws supplied
|
| | |

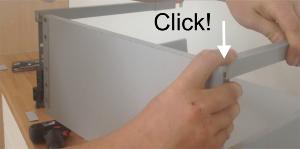

| | - Click the two gallery rails into position from the top down as shown
|
| | |

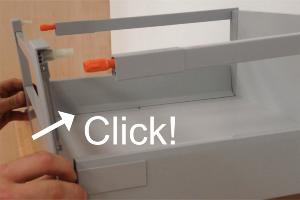

| | - Line up the fixing brackets on the drawer front with the drawer sides
- Click the drawer front into place

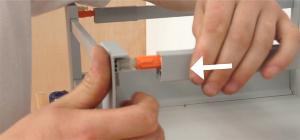

- Screw the orange barrels into position
|
| | |
| | - Finally, slide the cover section to enclose the fixings
|
| | |
| |
- Your drawer is now assembled
- You are now ready to mark out and attach the drawer runners
|
| | |
|
|
|
